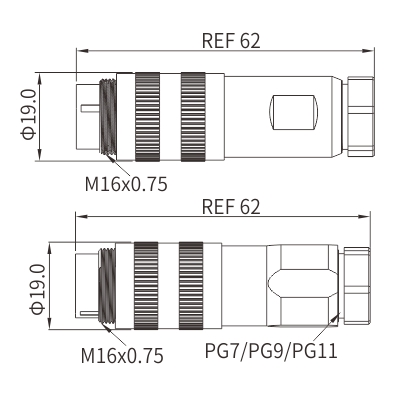

M16 Male Field Wirable Assembly, Straight, Solder
M16_2025 P425-1
Part No：MB16MSSAFF**ST-X
- Specification
- Application
- Certified
Connector series: M16
Gender: Female
Locking type: Fix screw
Mounting type: Straight
Part No.: MB16MSSAFF**ST-X
General information
Standard: IEC 61076-2-106 Ambient temperature: 25℃ ~ +70℃ Connector insert: PBT Connector contacts: Brass with gold plated Connector screw/body: Brass with nickel plated Coupling screw: PA+GF Seal/O-ring: NBR/FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Available/Unavailable Suitable cable Dia: PG7:4~6mm; PG9:6~8mm IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Contact termination Rated current Voltage Voltage Cable jacket Cable ending & length A/C D/C AWG mm² 02 pins Solder version 5A(40℃) 100V 100V 18AWG 0.75 PUR/PVC Customized cable ending and length 03 pins Solder version 5A(40℃) 100V 100V 18AWG 0.75 PUR/PVC 04 pins Solder version 5A(40℃) 100V 100V 18AWG 0.75 PUR/PVC 05 pins-a Solder version 5A(40℃) 63V 63V 18AWG 0.75 PUR/PVC 05 pins-b Solder version 5A(40℃) 32V 32V 18AWG 0.75 PUR/PVC 06 pins Solder version 5A(40℃) 63V 63V 18AWG 0.75 PUR/PVC 07 pins-a Solder version 5A(40℃) 63V 63V 18AWG 0.75 PUR/PVC 07 pins-b Solder version 5A(40℃) 32V 32V 18AWG 0.75 PUR/PVC 08 pins Solder version 5A(40℃) 32V 32V 18AWG 0.75 PUR/PVC 12 pins Solder version 1A(40℃) 32V 32V 24AWG 0.25 PUR/PVC 14-b pins Solder version 1A(40℃) 32V 32V 24AWG 0.25 PUR/PVC 19 pins Solder version 5A(40℃) 32V 32V 24AWG 0.25 PUR/PVC
In the process of UL certification right now.
